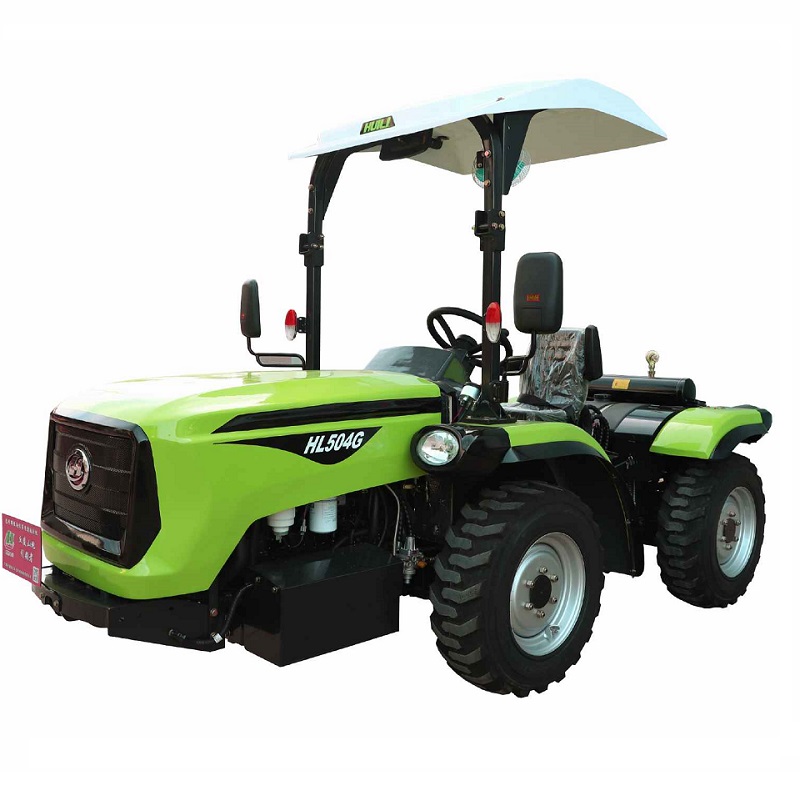

This product is independently developed and designed according to the concept of system engineering. It is a multi-purpose hilly mountain tractor composed of a main power module, a functional module and an attachment module.
Product Description
1. This product is independently developed and designed according to the concept of system engineering. It is a multi-purpose hilly mountain tractor composed of a main power module, a functional module and an attachment module. The combination of each module can be quickly connected through the electromechanical and hydraulic standardized interface, making the operation simple and convenient., flexible.
2. The innovative structural design can realize functions such as variable wheelbase, adjustable ground clearance, wheel-track switching, and two-way driving, and can be equipped with a variety of working platforms;
3. The application of key technologies such as front and rear axle wheel speed reduction, articulated steering, four-wheel and other large drives, front and rear differential locks, and air-controlled mechanical seal braking devices make the whole machine have a small turning radius, good passability, and strong stability. , superior climbing ability, better adapted to large-scale operations under various complex working conditions.
| ITEM | PER | PARAMETERS | ||
| CODE | / | HLA504 | ||
| Whole machine | Overall size（L×W×H and part） | mm | 4075×1655×2480（TO the top of cab） | |
| Type of driving | / | Four-wheeled drive | ||
| Wheelbase | mm | 1600 | ||
| Min. Using mass | kg | 2680 | ||
| Min.turning radius | mm | 3050 | ||
| Min.ground clearance and part | mm | 330（Bottom of rear axle） | ||
| Power module | Engine | The rated power | kW/HP | 36.8/50 |
| The rated speed | r/min | 2200 | ||
| Transmission | Gearbox（forward/back） | / | 8/8 | |
| The rated speed range（forward/back） | km/h | 2.14～39.56/1.90～34.95 | ||
| Steering | Type of steering | / | Articulated steering | |
| Traveling | Front wheel track | mm | 1340 | |
| Tires/Numbers（front） | / | 12.5/80-18/（2） | ||
| Max. Climbing slope | % | 36.4（≈20°） | ||
| Functional module | Traveling and Braking | Tires/numbers（Rear） | pic | 12.5/80-18/（2） |
| Rear wheel track | mm | 1340 | ||
| Walking brake system | / | Closed air brake | ||
| Parking brake system | / | Air brake | ||
| Working device | Hydraulic output | / | 1 set or 2sets | |
| PTO output spline | / | 8-38×32×6 | ||
| The rated speed of PTO | r/min | 540/720/1000（Single or dual） | ||
planetary axle
Good carrying capacity，Wheelbase is fixed, not adjustable.
Three types of cab
Twist and bend 15°
Modular concept display:
