It is mainly used in scenarios such as the transfer of large equipment, field transfer of sugar cane planting, and wood transfer in forest land.
Product Description

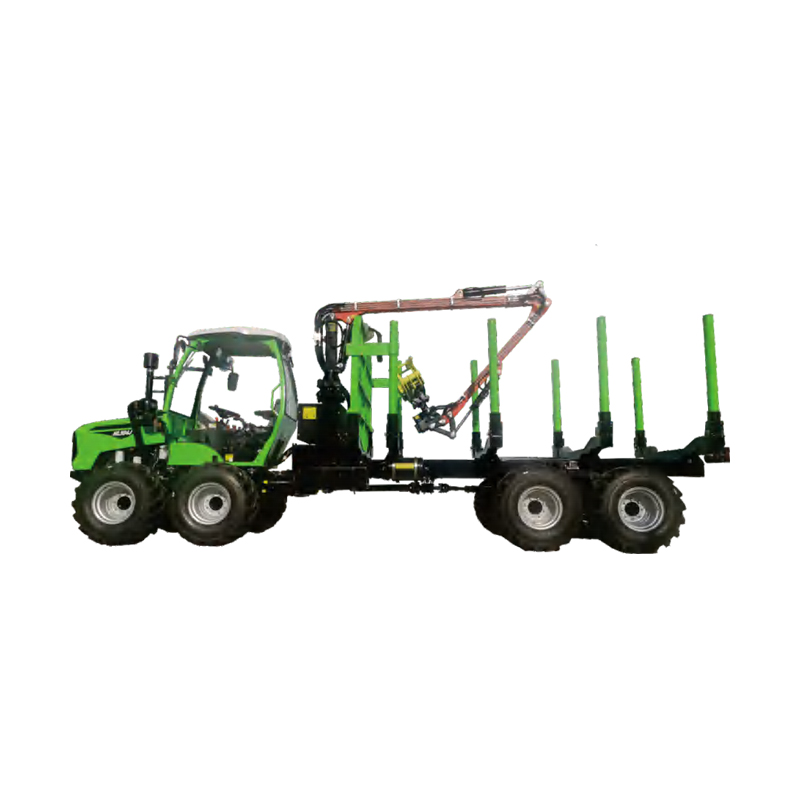

It is mainly used in scenarios such as the transfer of large equipment, field transfer of sugar cane planting, and wood transfer in forest land. With an articulated structure, when necessary, the transfer module can be switched to the tractor's three-point suspension module to form a standard hilly and mountainous tractor.
| ITEM | STANDARD CONFIGURATION | |
| Overall size ( Lx Wx H) | mm | 7540x2245x3030 |
| Drive type | / | Eight-wheeldrive |
| Wheelbase | mm | 4500 |
| Min. use mass | kg | 5685 |
| Min. totalmass | kg | 10685 |
| Min. turningradius | mm | 8220 |
| Min.ground clearance | mm | 420 |
| Engine rated power | Kw/hp | 36.8/50 |
| Engine rated speed | r/min | 2200 |
| Gearbox (forward/ retreat) | / | 8F/8R |
| Rated rpmspeed range(forward/retreat) | Km/h | 1.94-34.95/1.72-3167 |
| Front/Rear wheelbase | mm | 1775/1775 |
| Tires mode/numbers | / | 35x19-16/8 |
| Max grabbingmass | kg | 150 |
| Max grabbing width | mm | 9800 |
| Max grabbing heigth | mm | 5000 |
| Carriage size(LxWxH ) | mm | 3980x2100x1540 |
| Driving brake system | / | Air brake |
