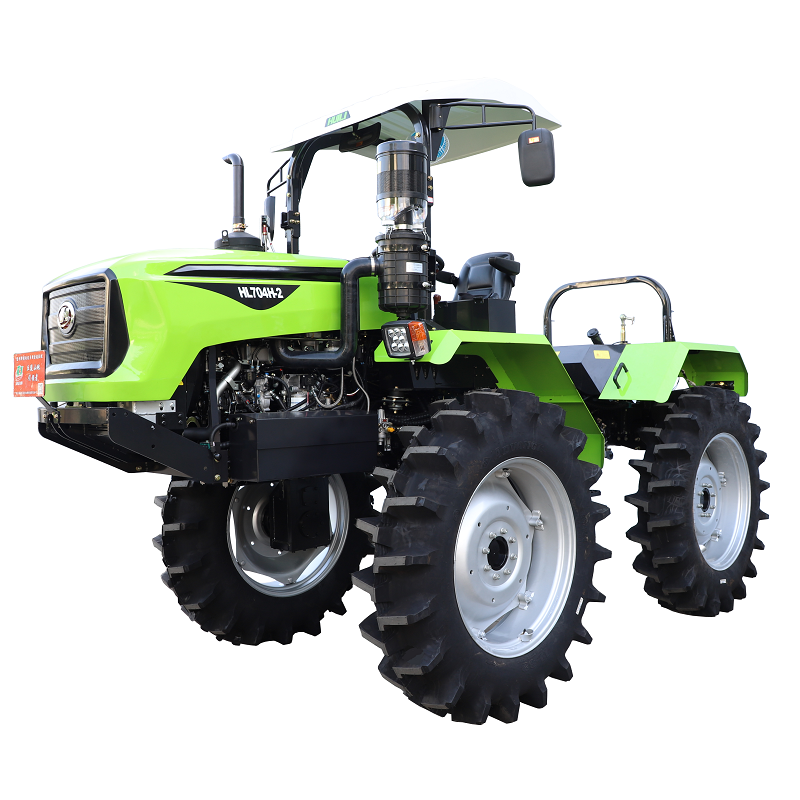

Mainly used in paddy fields and tall crops. According to the modular concept, when necessary, it can be switched to a standard tractor or a low-ground clearance tractor by switching the wheel speed reduction.
Product Description
Mainly used in paddy fields and tall crops. According to the modular concept, when necessary, it can be switched to a standard tractor or a low-ground clearance tractor by switching the wheel speed reduction.
1. The whole machine has a compact structure, flexible steering, and a small turning circle radius, making it more suitable for operations on small and medium-sized plots.
2. Two-way driving function, dual clutch and dual PTO design, easy and fast operation, meeting different operating needs, and efficient operation.
3. The gearbox has a full gear set for shifting, making the operation smooth and reliable; the dual-clutch design makes the operation more efficient and reliable.
| ITEM | PARAMETERS | |||
| CODE | / | HL704H-2 | ||
| Whole machine | Overall size（L×W×H and part） | mm | 4850×2000×3050（To the top of cab） | |
| Type of driving | / | Four-wheeled drive | ||
| Wheelbase | mm | 2120 | ||
| Min. Using mass | kg | 3640 | ||
| Min. Turning radius | mm | 4200 | ||
| Min. Ground clearance and part | mm | 1000（Bottom of rear axle） | ||
| Power module | Engine | The rated power | kW/HP | 51.5/70 |
| The rated speed | r/min | 2200 | ||
| Transmission | Gearbox（forward/back） | / | 8/8 | |
| The rated speed range（forward/back） | km/h | 1.97～36.44/1.75～32.19 | ||
| Steering | Type of steering | / | Articulated steering | |
| Traveling | Front wheel track | mm | 1635 | |
| Tires/numbers（front） | / | 11-32/2 | ||
| Max. Climbing slope | % | 46.6（≈25°） | ||
| Functional module | Traveling and Braking | Rear wheel track | mm | 1635 |
| Tires/numbers（rear） | pic | 11-32/2 | ||
| Walking brake system | / | Closed air brake | ||
| Parking brake system | / | Air brake | ||
| Working device | Hydraulic output | / | 1 set or 2 sets | |
| PTO output spline | / | 8-38×32×6 | ||
| The rated speed of PTO | r/min | 540/720/1000（single or dual） | ||
Three types of cab
Twist and bend 15°
Modular concept display
